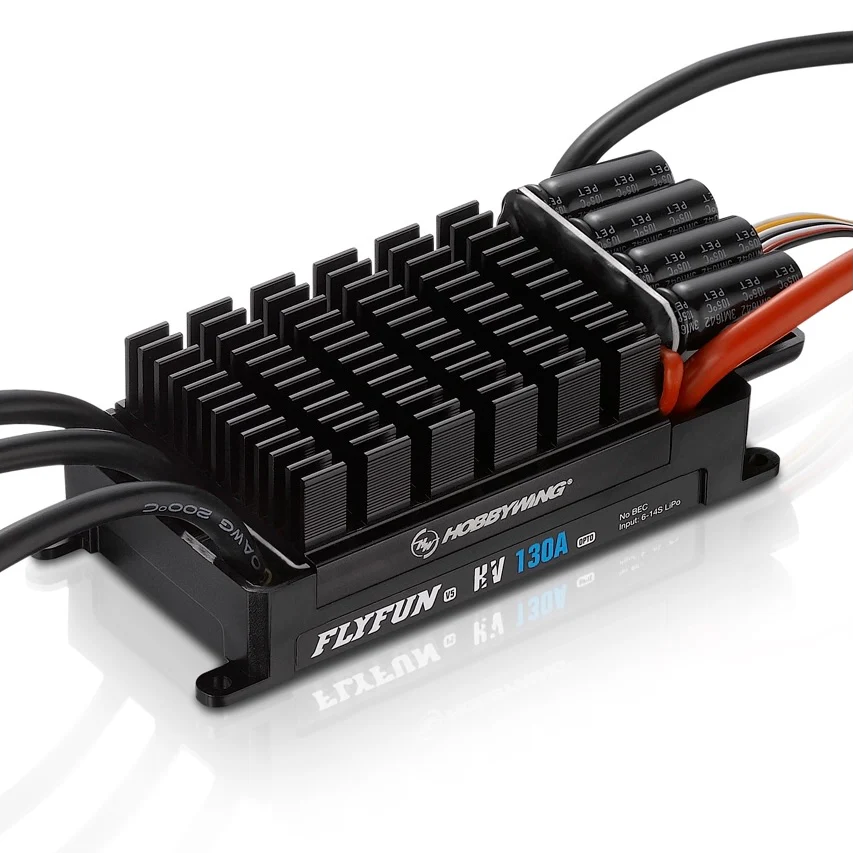

FLYFUN 130A HV OPTO V5 ESC (6S-14S)

• ESC which features a high-performance 32-bit ARM M4 microprocessor (with a running frequency of up to 72MHz) is compatible with various brushless motors.
• Microprocessor powered by a separate DC regulator has better anti-interference performance and greatly reduces the possibility of losing control.
• DEO (Driving Efficiency Optimization) Technology greatly improves throttle response & driving efficiency and reduces ESC temperature.
• Built-in high-power BEC with output voltage adjustable among 5.2V, 6.0V, and 7.4V. The BEC module is separate from other circuits on the ESC, so the normal BEC output can be guaranteed (when an issue like a burnt power board happens) to allow users to get the aircraft back before the crash. (Note: the FLYFUN 80A/120A/130A/160A-HV-OPTO-V5 doesn’t have this function.)
• Normal/Soft/Very Soft start-up modes are compatible with regular propeller airplanes and EDF jet airplanes (pls ensure to select the “Very Soft Start-up” mode when using EDF jet airplanes). • Separate programming cable for connecting ESC to a LED program box and allows users to program the ESC anytime, anywhere. (For detailed info, please refer to the user manual of the HOBBYWING LED program box.)
• Normal/proportional/reverse brake modes (esp. reverse brake mode) can effectively shorten the landing distance for the aircraft.(Note: Only 110A-HV-OPTO-V5 has this function.)
• Multiple protection features like start-up, ESC thermal, capacitor thermal, over-current, over-load, abnormal input voltage, and throttle signal loss effectively prolong the service life of the ESC.
• For FLYFUN 160A-OPTO HV ESC, see additional information >

Learn more >

• Specification
• Accessorires
• Download

• 	160A HV OPTO V5	130A HV OPTO V5	110A HV SBEC V5	110A HV OPTO V5
  p/n	30201650	30201500	30201700	30201701
  Cont./Peak Current	160A/200A	130A/160A	110A/140A	110A/140A
  Input	6-14S LiPo	6-14S LiPo	6-14S LiPo	6-14S LiPo
  BEC	NO	NO	5.2V/6V/7.4V 10A/25A	NO
  Input /output wire	10AWG / 150mm	10AWG/ 150mm	10AWG/ 150mm	10AWG/ 150mm
  Input connector	NO	NO	NO	NO
  Output connector	NO	NO	NO	NO
  Size (mm)	110x50.3x33.3	110x50.3x33.3	92.7x45.6x27	92.7x45.6x27
  weight	221.5g	221.5g	180g	170g
  Reverse Brake Mode	Not Supported	Not Supported	Not Supported	Not Supported

•  Accessories available

  • UBEC-10A (2-6S)(sold separately)
  • UBEC 8A (2-3S)UBEC 8A (2-3S)(sold separately)
  • UBEC 5A HV (3-10S)(sold separately)
  • LED program Box(sold separately)

•  Manual download
