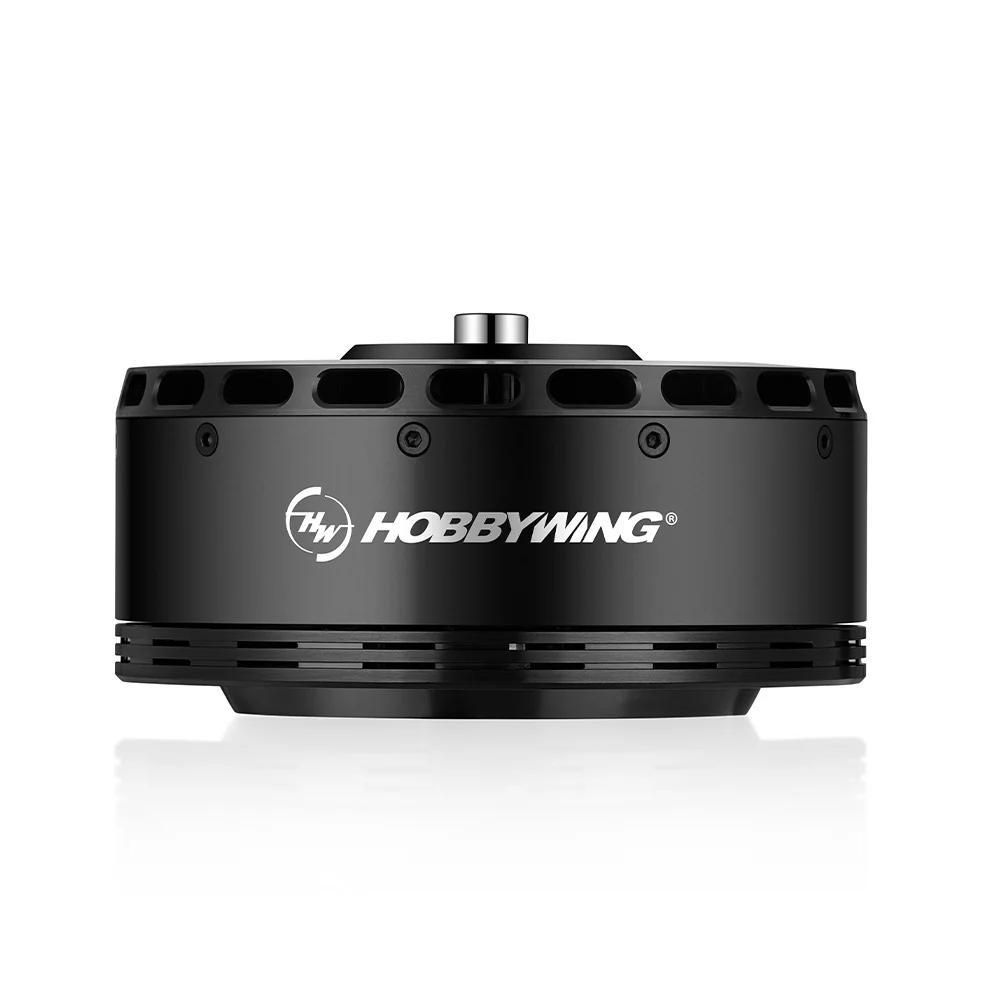

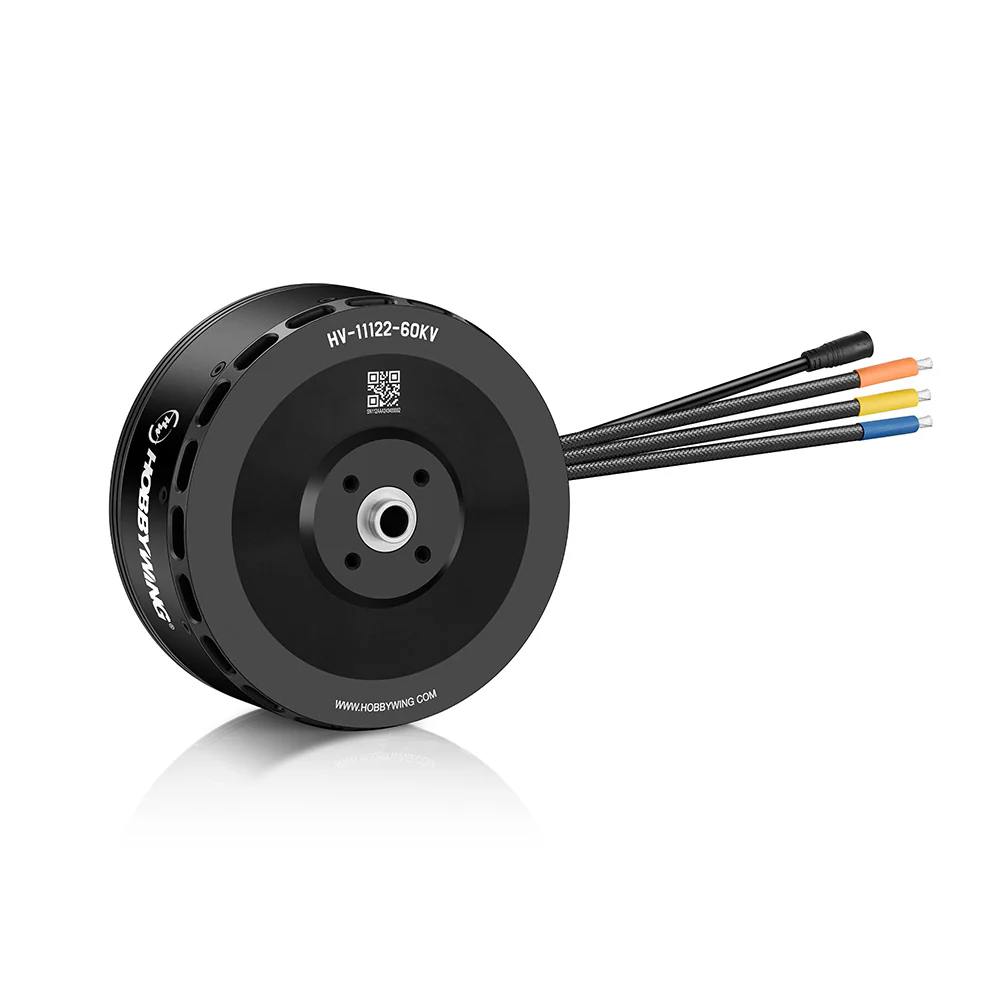

XRotor V11122 Motor - VTOL
H-series Type V: Specially Designed for Heavy Duty VTOL
Specifications
| Motor Size: |
Φ120.1*H59mm |
| Weight W/ wire: | 1319g |
|
KV: |
60KV |
|
Battery: |
24S |
|
Recommended Thrust: |
20~23kg |
| Takeoff weight of quadrotor: | 80~90kg |
| Max Power: | 14.8kW |
| Rated power Input / Output | 3700W / 3145W |
| Prop: | MV40.1x16" |
| ESC: | XRotor Pro H200A 24S |
| IPC Function: | NO |
HOBBYWING V11122 motor is designed for heavy-load VTOL UAVs, with an impressive thrust of up to 52.5kg and an outstanding thrust-to-weight ratio of 39:8. It is applied to various UAV applications like emergency response, surveillance, inspection, and hydrological monitoring. The optional Intelligent Propeller Control (IPC) function allows flexible adjustment of propeller stop positions with the use of HOBBYWING IPC ESC, reducing drag during cruise and significantly improving flight time.
Original: $474.99
-65%$474.99
$166.25
Description
H-series Type V: Specially Designed for Heavy Duty VTOL
Specifications
| Motor Size: |
Φ120.1*H59mm |
| Weight W/ wire: | 1319g |
|
KV: |
60KV |
|
Battery: |
24S |
|
Recommended Thrust: |
20~23kg |
| Takeoff weight of quadrotor: | 80~90kg |
| Max Power: | 14.8kW |
| Rated power Input / Output | 3700W / 3145W |
| Prop: | MV40.1x16" |
| ESC: | XRotor Pro H200A 24S |
| IPC Function: | NO |
HOBBYWING V11122 motor is designed for heavy-load VTOL UAVs, with an impressive thrust of up to 52.5kg and an outstanding thrust-to-weight ratio of 39:8. It is applied to various UAV applications like emergency response, surveillance, inspection, and hydrological monitoring. The optional Intelligent Propeller Control (IPC) function allows flexible adjustment of propeller stop positions with the use of HOBBYWING IPC ESC, reducing drag during cruise and significantly improving flight time.
