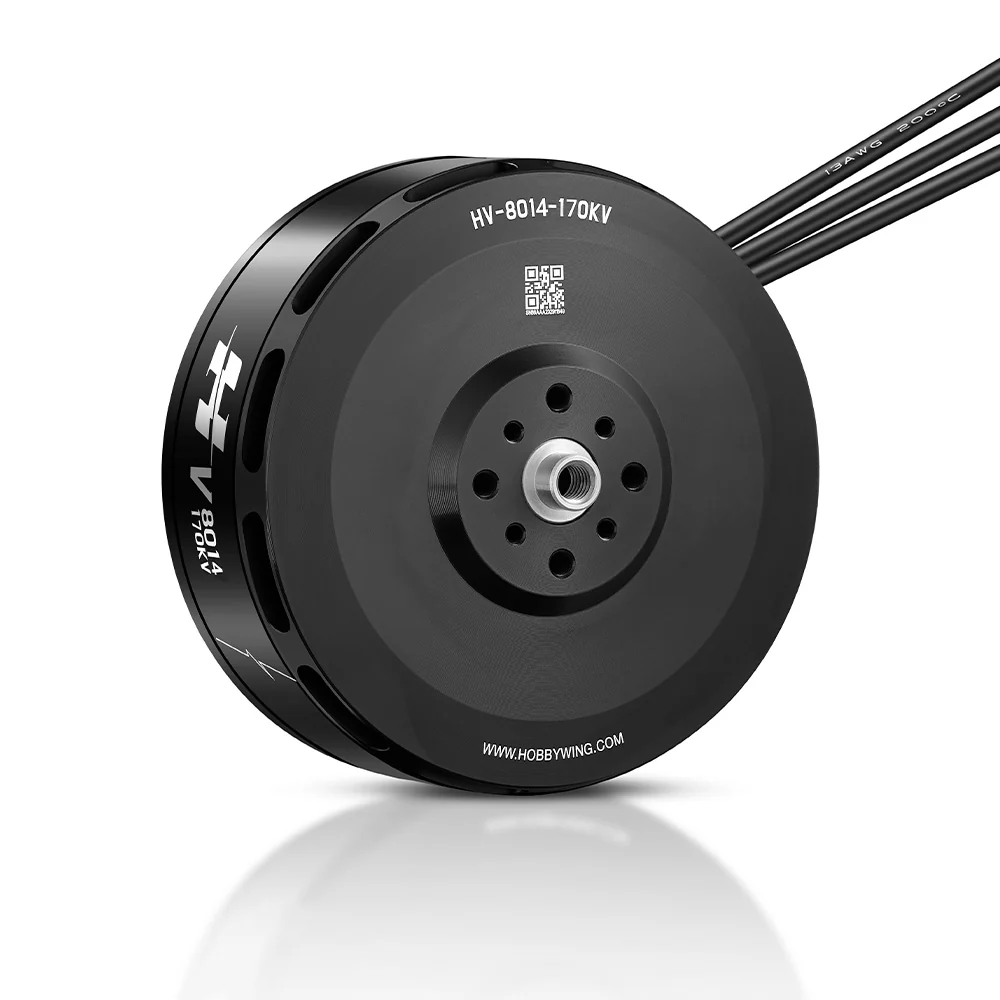

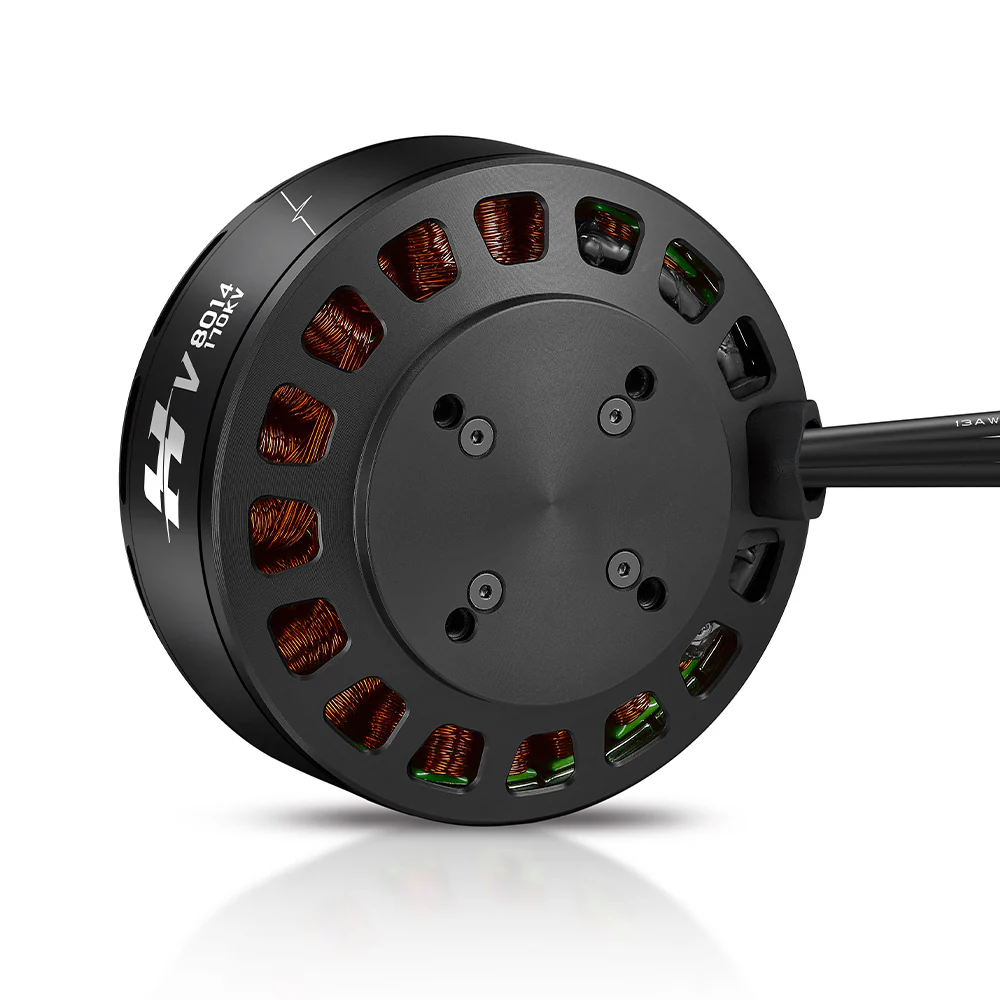

XRotor V8014 IPC Motor - VTOL
H-series Type V: Specially Designed for VTOL
Specifications
| Motor Size: | Φ89.1*47.45mm |
| Weight W/ wire: | 555.3g |
|
KV: |
170KV |
|
Battery: |
12S |
|
Recommended Thrust: |
5.5~7.5kg |
| Takeoff weight of quadrotor: | 22~30kg |
| Max Power: | 4000W |
| Rated power Input / Output | 1100W / 935W |
| Prop: | GP26*8.5 / GP27*8.8 / GP28*9.2 |
| ESC: | H60A 14s / H80A 14S |
| IPC Function: | YES |
HOBBYWING V8014 170KV motor, designed for VTOL fixed-wing drones, provides a maximum thrust of 21kg per rotor with 28″ propellers, ideal for drones weighing 22 to 30kg at takeoff. Moreover, its exceptional thrust-to-weight ratio of 38:1 enables powerful bursts of lift especially for heavy payload UAVs. The optional IPC version will allow you to flexibly adjust propeller stop position to reduce forward flight drag and increase flight time when matched with Hobbywing IPC ESCs.
Original: $174.99
-65%$174.99
$61.25
Description
H-series Type V: Specially Designed for VTOL
Specifications
| Motor Size: | Φ89.1*47.45mm |
| Weight W/ wire: | 555.3g |
|
KV: |
170KV |
|
Battery: |
12S |
|
Recommended Thrust: |
5.5~7.5kg |
| Takeoff weight of quadrotor: | 22~30kg |
| Max Power: | 4000W |
| Rated power Input / Output | 1100W / 935W |
| Prop: | GP26*8.5 / GP27*8.8 / GP28*9.2 |
| ESC: | H60A 14s / H80A 14S |
| IPC Function: | YES |
HOBBYWING V8014 170KV motor, designed for VTOL fixed-wing drones, provides a maximum thrust of 21kg per rotor with 28″ propellers, ideal for drones weighing 22 to 30kg at takeoff. Moreover, its exceptional thrust-to-weight ratio of 38:1 enables powerful bursts of lift especially for heavy payload UAVs. The optional IPC version will allow you to flexibly adjust propeller stop position to reduce forward flight drag and increase flight time when matched with Hobbywing IPC ESCs.
